Specifications of MSI H510M PLUS II 10th/11th Gen mATX Motherboard

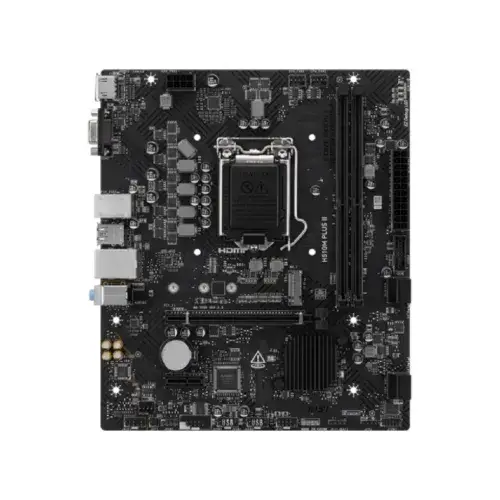

MSI H510M PLUS II 10th/11th Gen mATX Motherboard

MSI H510M PLUS II 10th/11th Gen mATX Motherboard
The MSI H510M PLUS II Motherboard is a dependable and cost-effective alternative for building a compact yet powerful desktop computer, providing the key capabilities required for smooth gaming, productivity, and everyday use. It is powered by the Intel H510 chipset and supports 10th and 11th-generation Intel Core processors, as well as Pentium Gold and Celeron CPUs, allowing consumers flexibility across various system designs. Memory compatibility includes two DDR4 slots with dual-channel capabilities, allowing for a maximum capacity of 64GB. Depending on the CPU installed, the MSI H510M PLUS II Motherboard supports speeds of up to 2933MHz for Intel Core i9 and Core i7 processors and up to 2666MHz for Core i5, Core i3, Pentium Gold, and Celeron CPUs, with Intel Extreme Memory Profile (XMP) support for easy overclocking. Onboard graphics include HDMI 1.4, which supports 4K resolution at 30Hz, and a VGA output with resolutions up to 2048x1536, though availability varies depending on the CPU used. For expansion, the board has one PCIe 3.0 x16 slot for a dedicated graphics card and one PCIe 3.0 x1 slot for other devices. Storage is handled by a fast M.2 slot that supports PCIe 3.0 x4 and SATA modes, as well as four SATA 6Gb/s connectors. The MSI H510M PLUS II Motherboard supports both SSDs and traditional hard drives. The audio system uses the Realtek ALC897 codec to provide 7.1-channel high-definition sound, which improves entertainment and gaming experiences. Connectivity is practical, with four USB 2.0 connections on the back and four on the front, as well as two USB 3.2 Gen1 Type-A connectors on both the front and back for fast transfers. MSI H510M PLUS II Motherboard's networking is powered by Realtek 8111H Gigabit LAN for reliable wired connectivity. Additional internal I/O includes CPU and system fan headers, RGB lighting, chassis intrusion detection, COM port, TPM 2.0, and front audio. EZ Debug LEDs are a useful feature that makes troubleshooting easier. The MSI H510M PLUS II, with a tiny micro-ATX form factor of 202mm x 236mm, is compatible with Windows 10 and Windows 11, making it a reliable motherboard that balances performance, expandability, and value for budget-conscious consumers.
